Technical Data – GDR 12V-110 Professional

Additional Data

• Battery voltage: 12.0 V

• Max. torque: 110 Nm

• No-load speed: 0–1,200 rpm

• Tool holder: 1/4” Hex Uni

• Weight incl. battery: 0.9 kg

• No-load speed (1st level): 0–1,200 rpm

• No-load speed (2nd level): 0–2,600 rpm

• Torque settings: 2

• Max. impact rate: 0–3,100 ipm

• Impact rate (1st level): 0–2,700 ipm

• Impact rate (2nd level): 0–3,100 ipm

Vibration Information

• Total vibration values (tightening screws and bolts at maximum capacity):

  • Vibration emission value ah: 10 m/s²

  • Uncertainty K: 1.5 m/s²

GDR 12V-110 Professional: Additional Information

Product Highlights

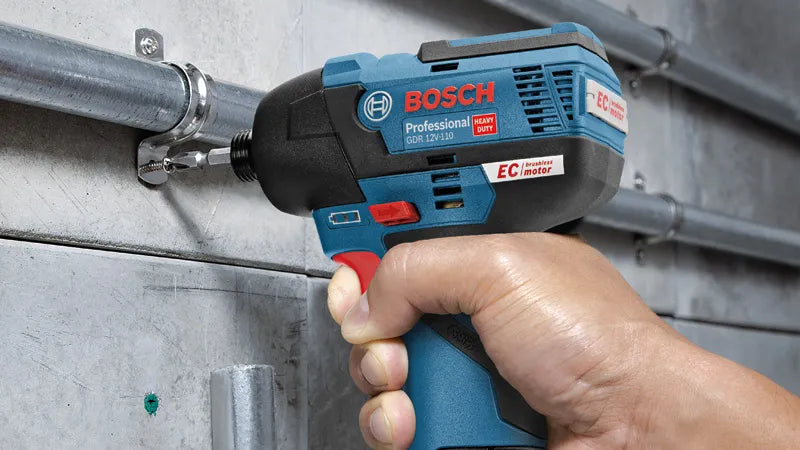

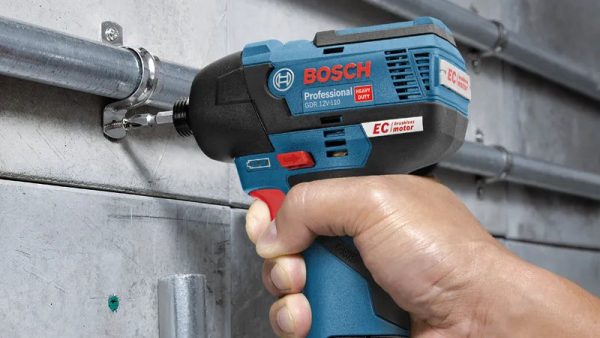

The cordless impact driver GDR 12V-110 Professional, equipped with a brushless motor, is the most compact solution in Bosch’s 12V category. Its small form factor ensures perfect handling, even in tight spaces and overhead applications. For greater precision when driving screws, the 2-speed power control prevents overdriving of small screws. Delivering a powerful 110 Nm of torque, it is suitable for most common impact driver applications. This tool is designed for screws with diameters ranging from M4 to M12. It is compatible with all Bosch Professional 12V batteries and chargers (Professional 12V System).

Equipment and Application
The GDR 12V-110 Professional includes a charge level indicator, Electronic Cell Protection (ECP), lithium-ion battery technology, speed selection, and variable speed control.
