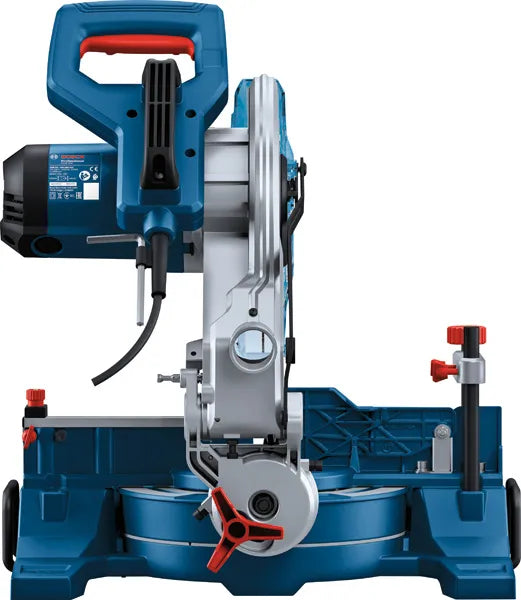

Technical Data – GCM 254 Professional

Additional Data

• Rated input power: 1,750 W

• Saw blade diameter: 254 mm

• Mitre setting: 47° Left / 52° Right

• Bevel setting: 45° Left / 0° Right

• Bore diameter: 30 mm

• Cutting capacity at 0°: 90 x 130 mm

• Cutting capacity at 45° mitre: 90 x 91 mm

• Cutting capacity at 45° bevel: 60 x 130 mm

• Tool dimensions (W x L x H): 477 x 559 x 567 mm

• No-load speed: 5,000 rpm

• Weight: 11.1 kg

GCM 254 Professional: Additional Information

Product Highlights
The GCM 254 Professional is designed for maximum precision, ease of use, and long service life. Achieve more accurate and consistent cuts with this mitre saw. Longer and larger material cuts can now be performed with greater stability and accuracy thanks to the extension, while repeated cuts at the same length are made precise with the length limiter.

Equipment and Application

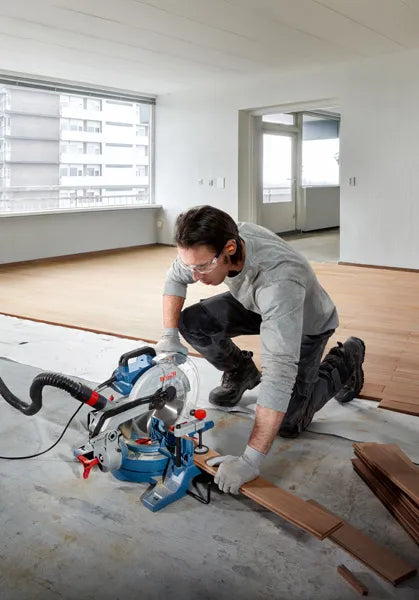

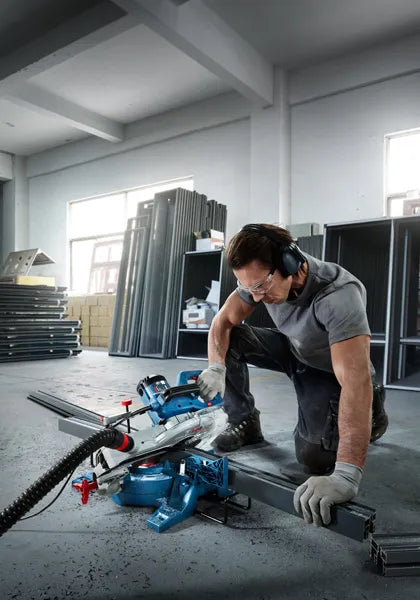

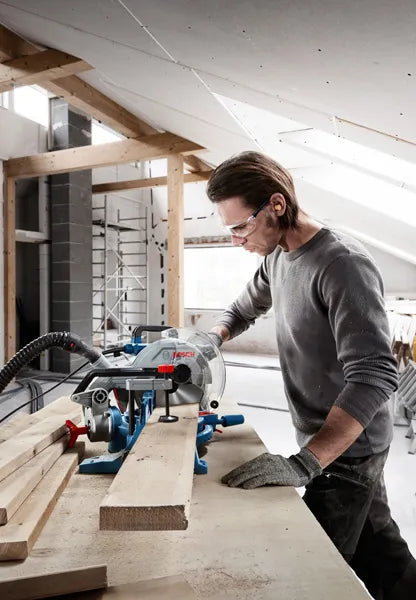

The GCM 254 mitre saw is engineered for durability and precision, delivering consistent and repetitive cuts in wood and aluminum. It is ideal for carpenters, glaziers, roofers, and other professional trades.
